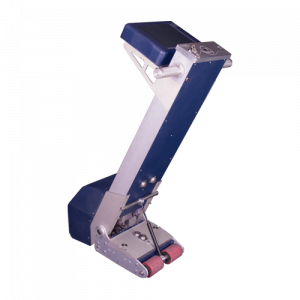

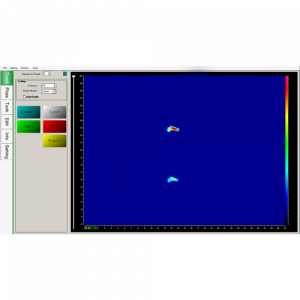

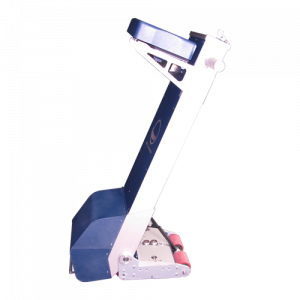

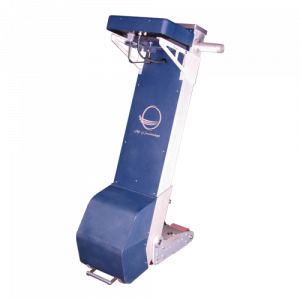

Smart Floor Scanner is a non-destructive tool based on magnetic flux leakage (MFL) principles, which designed to inspect the metallic floor storage tanks for the locations, dimensions, depths of corrosion and defects above and under the surface. Smart Floor Scanner is auto-motorized, allows the inspector to scan the floor of the tank very fast. Also, Smart Floor Scanner equipped with a high-performance PC and specialized software for real-time analysis and display of defects and corrosion data simultaneously. Powerful magnets and sensors located in the form of special arrangements to detect and classify the corrosion and defects in the floors with different thicknesses accurately. Therefore, Smart Floor Scanner can effectively detect corrosion, pitting, and other failures in high resolution. It has benefited:
- High Durable and Powerful Magnet
- High accuracy data acquisition
- Special signal processing by WII algorithms
- Smooth auto-motorized mechanism drive
- Detachable structure for easy handling and transportation
- Professional Smart Floor Scanner Software (SFS)

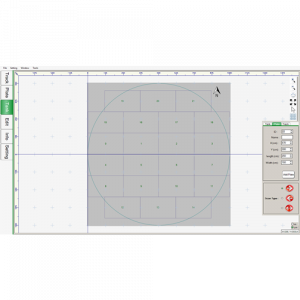

Together these features have led to achieve high-quality inspection and to reduce the inspection time and cost. As a result, the tank’s owner can plan an optimum repair map and improve Fitness For Service (FFS) assessments, Remaining Life Assessment (RLA), and Risk-Based Inspection (RBI) programs. WII software has a user-friendly interface to define the map of plates in the tank. Also, it can modify the inspection data manually by data from other methods (MFL Hand Scanner, UT based, Vision-based, etc.). A special Technical Report Generator implemented on the software.[/vc_column_text][vc_row_inner][vc_column_inner width=”1/2″][vc_single_image image=”173″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_single_image image=”176″ img_size=”full”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1590788419584{margin-top: 0px !important;}”][vc_column][vc_tta_tabs style=”modern” active_section=”1″ css=”.vc_custom_1462194445950{margin-top: 40px !important;}”][vc_tta_section i_type=”entypo” i_icon_entypo=”entypo-icon entypo-icon-feather” add_icon=”true” title=”Features” tab_id=”1441874218694-385c7ca7-4943b7b7-49cad8d5-f92a”][vc_row_inner][vc_column_inner width=”2/5″][vc_single_image image=”178″ img_size=”medium” alignment=”center”][/vc_column_inner][vc_column_inner width=”3/5″][vc_column_text]
- Inspect Storage Tank floor and any suitable plate
- Fast Setup & Easy Operation
- Magnetic sensors
- High durable and Powerful magnet
- Special signal processing and defect-recognition by WII algorithms
- User-friendly Software via Touch Screen Computer
- Software-based calibration for different plate thickness
- Chargeable Battery Power
- High-speed inspection by Auto-motorized up to 0.5m/sec

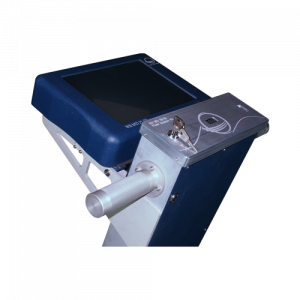

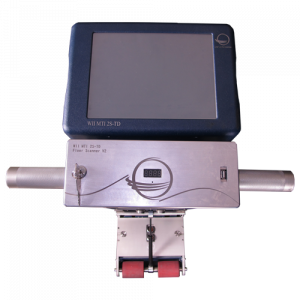

- Online inspection demonstration at Color TFT 12.1”
- Store/Load and manage the reports
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section i_type=”entypo” i_icon_entypo=”entypo-icon entypo-icon-tools” add_icon=”true” title=”Technical Specification” tab_id=”1441874218832-398800e3-835eb7b7-49cad8d5-f92a”][vc_row_inner][vc_column_inner width=”1/2″][cq_vc_datatable][cq_vc_datatable_item data1=”Principle of operation” data2=”Magnetic Flux Leakage”][cq_vc_datatable_item data1=”Detection sensors” data2=”Magnetic sensors”][cq_vc_datatable_item data1=”Scan width” data2=”300 mm”][cq_vc_datatable_item data1=”Method of propulsion” data2=”DC Motor”][cq_vc_datatable_item data1=”Speed” data2=”0.5 m/sec”][cq_vc_datatable_item data1=”Maximum single scan length” data2=”40 meters”][cq_vc_datatable_item data1=”Thickness range” data2=”Up to 20 mm”][cq_vc_datatable_item data1=”Non-magnetic coat thickness” data2=”Up to 6 mm”][cq_vc_datatable_item data1=”Dimension” data2=”Height: 990 mm, Width: 515 mm, Length: 710 mm”][cq_vc_datatable_item data1=”Weight” data2=”52 Kg”][cq_vc_datatable_item data1=”Sensitivity” data2=”20% (6-12 mm), 40% (12-20 mm)”][cq_vc_datatable_item data1=”Minimum defect detection sensitivity” data2=”2.5 mm diameter pipe type 50% deep”][/cq_vc_datatable][/vc_column_inner][vc_column_inner width=”1/2″][cq_vc_datatable][cq_vc_datatable_item data1=”Supported plate types” data2=”Rectangle, Annular and Sketch”][cq_vc_datatable_item data1=”Smart Floor Scanner Software (SFS)” data2=”Tank inspection management, Process & Demonstrate 2D Map of corrosions
Generate Standard/Special Report
Full version – Unlimited user
Free Update & Remote Support”][cq_vc_datatable_item data1=”Operating System” data2=”Windows 7, 8/8.1, or 10″][cq_vc_datatable_item data1=”Display” data2=”Color TFT 12.1“ & Touch Panel”][cq_vc_datatable_item data1=”Power Requirement” data2=”1x 12V Battery, 28Ah Sealed-Lead Acid”][cq_vc_datatable_item data1=”Batteries Supplied” data2=”4 supplied and 3 chargers for continues use”][cq_vc_datatable_item data1=”Operating Temperature” data2=”-30 °C to 55 °C”][cq_vc_datatable_item data1=”Storage Temperature” data2=”-40 °C to 80 °C”][cq_vc_datatable_item data1=”Humidity” data2=”10 – 95% RH”][/cq_vc_datatable][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]
